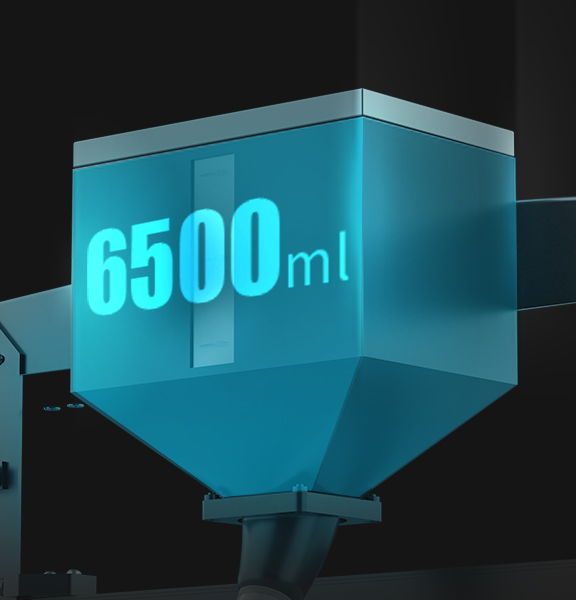

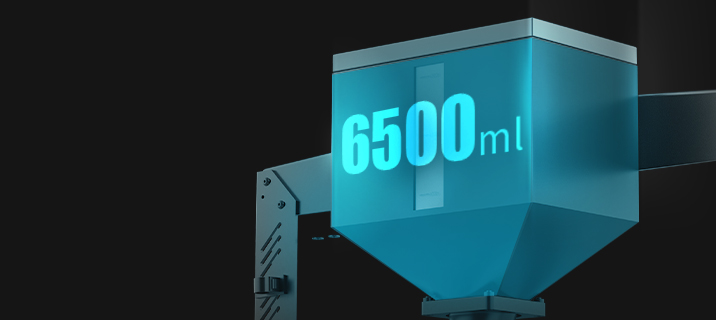

High-Capacity Hopper
No need for frequent material replenishment
G5Ultra
Desktop, Built Volume: 500×500×400mm
The New Standard in Industrial-Grade FGF 3D Printing
Application
Highlights
Massive Build Volume
A 500 x 500 x 400mm capacity tailored for efficient, large-scale industrial production
High-Temperature Extrusion
Up to 420°C for engineering-grade materials.
Wide Material Options
Seamlessly supports plastic pellets.
Green Innovation
Sustainable Future
Transform waste into value with the G5 Ultra. By supporting recycled pellets, flakes, and regrind, it enables sustainable large-format 3D printing, significantly reducing material waste while fostering a circular manufacturing ecosystem.
400°C Pellet Extrusion

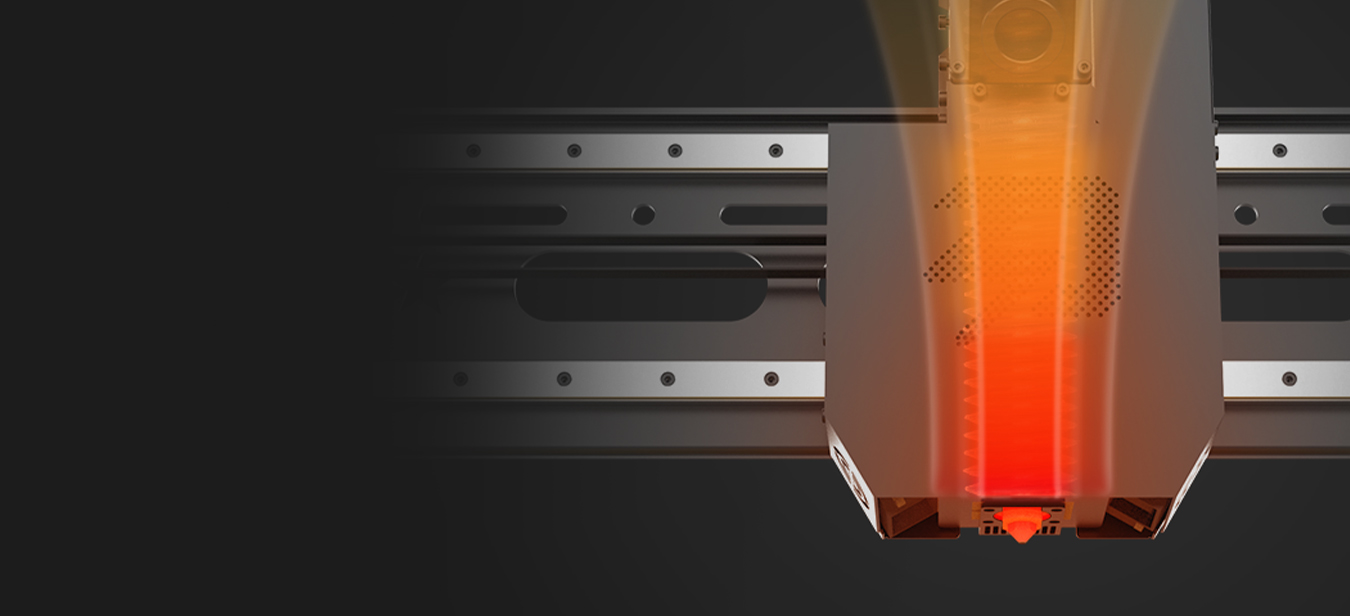

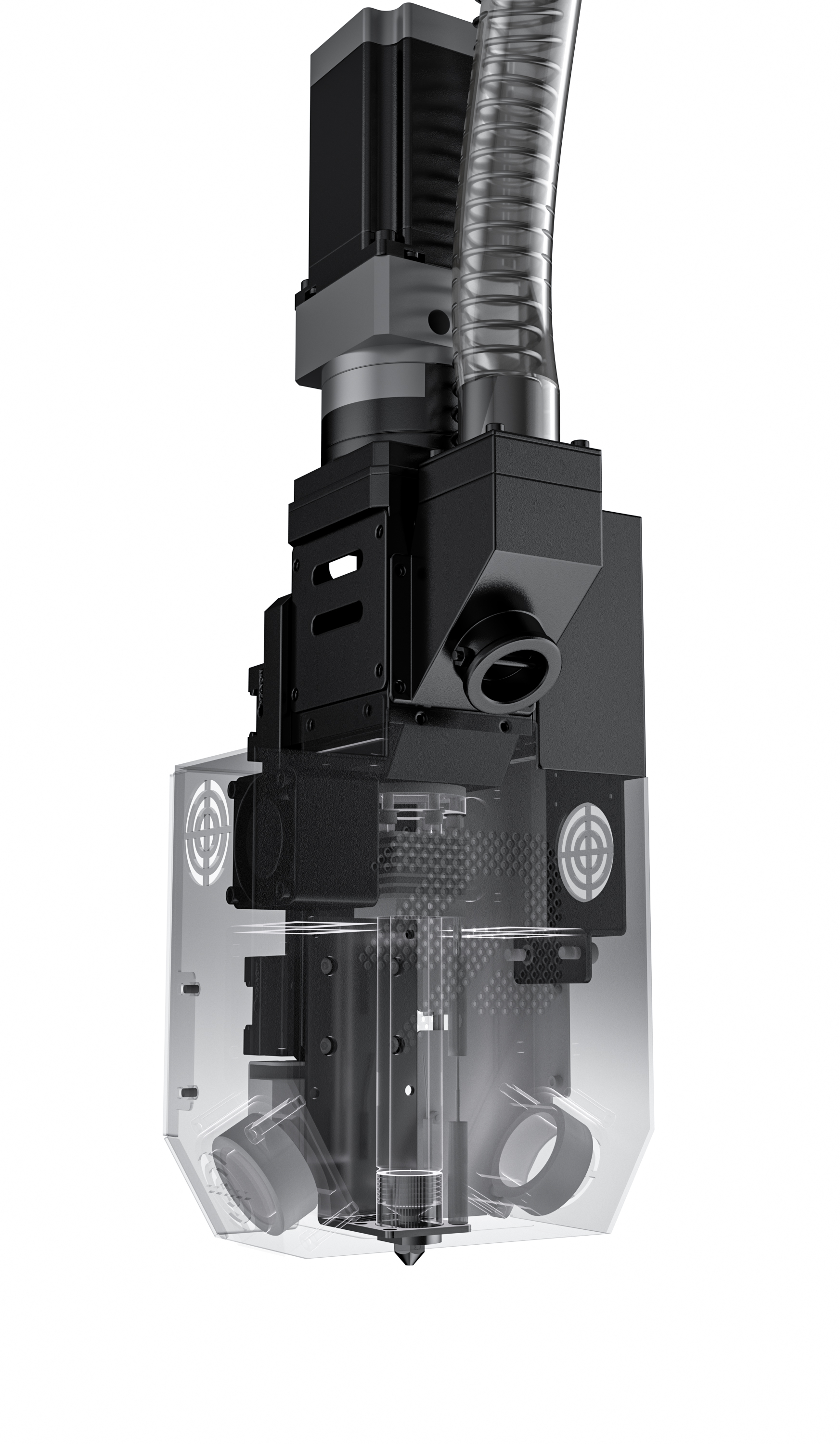

Advanced Extrusion System
Advanced Extrusion System
Engineered for powerful extrusion, high-temperature resilience, and stable material flow across diverse industrial applications
Next-Gen Screw Nozzle
Features a proprietary screw extrusion nozzle capable of reaching up to 420°C
High Extrusion Output
Achieves an extrusion rate of up to 0.8 kg/h, ensuring high-efficiency production with consistent material flow
Segmented Heating
Delivers precise thermal control and powerful extrusion force. Compatible with 0.4–3.0 mm nozzles for fast, reliable printing
Lightning-Fast Printing
Max Extrusion Output0.8 kg/h
Max Printing Speed220 mm/s

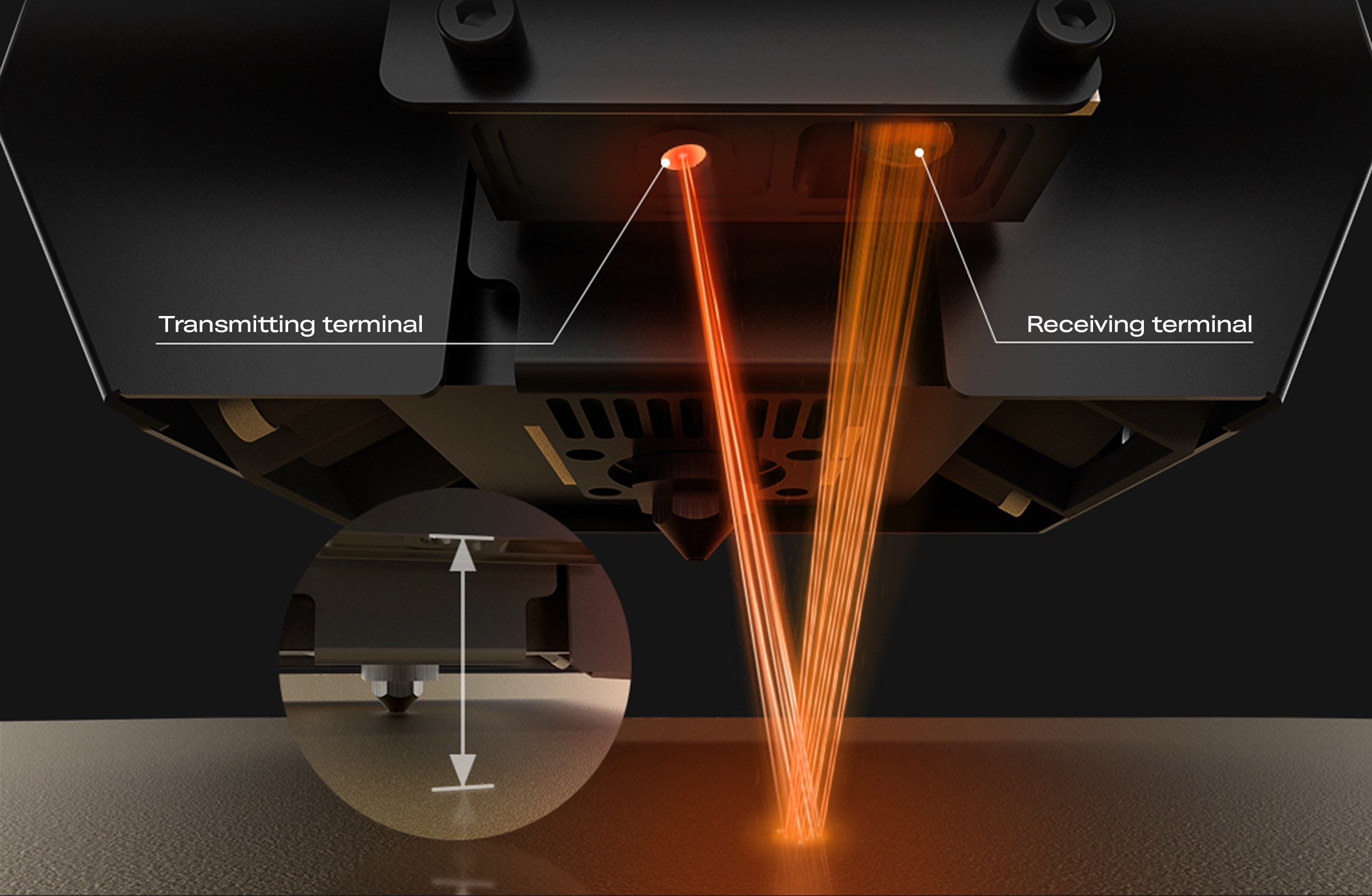

64-Point Laser Leveling
Utilizes non-contact laser sensor technology to significantly reduce leveling time while maximizing bed precision

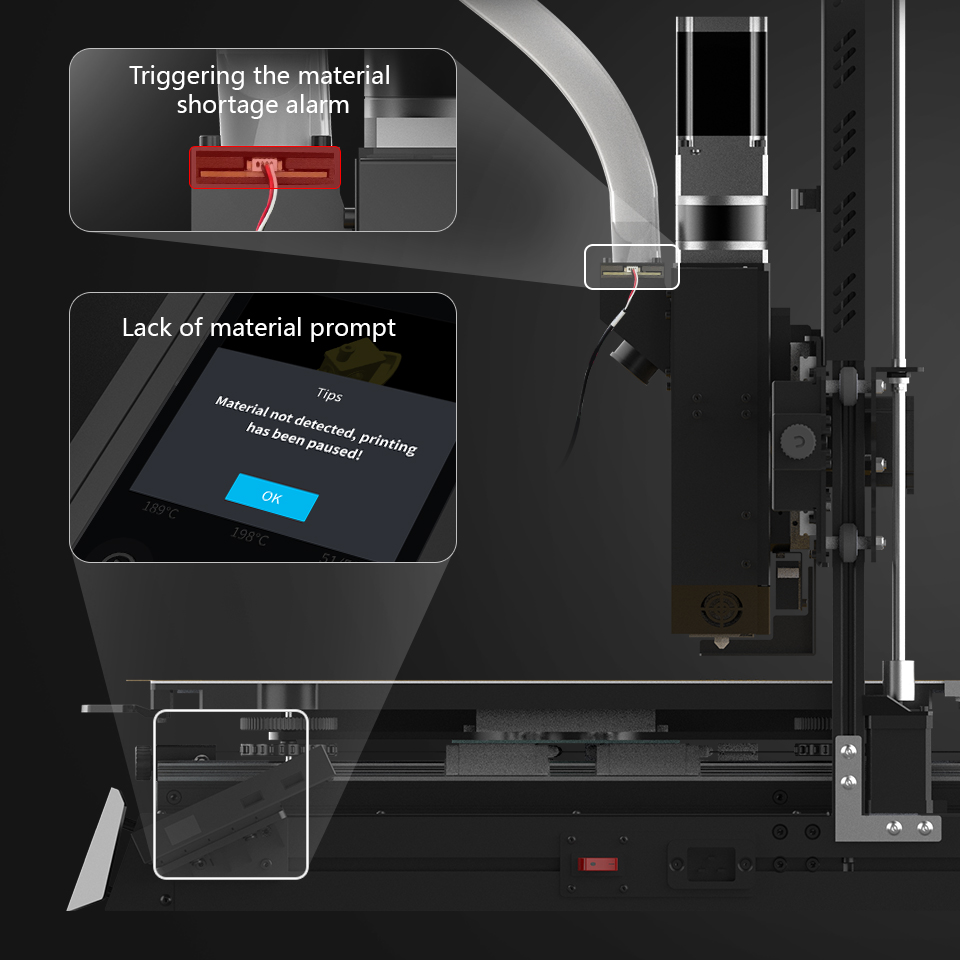

Dual Safeguards for Secure Printing
Equipped with material run-out detection and power loss recovery. The printer automatically saves progress and resumes seamlessly after reloading or power restoration, ensuring a print success rate of over 95%.

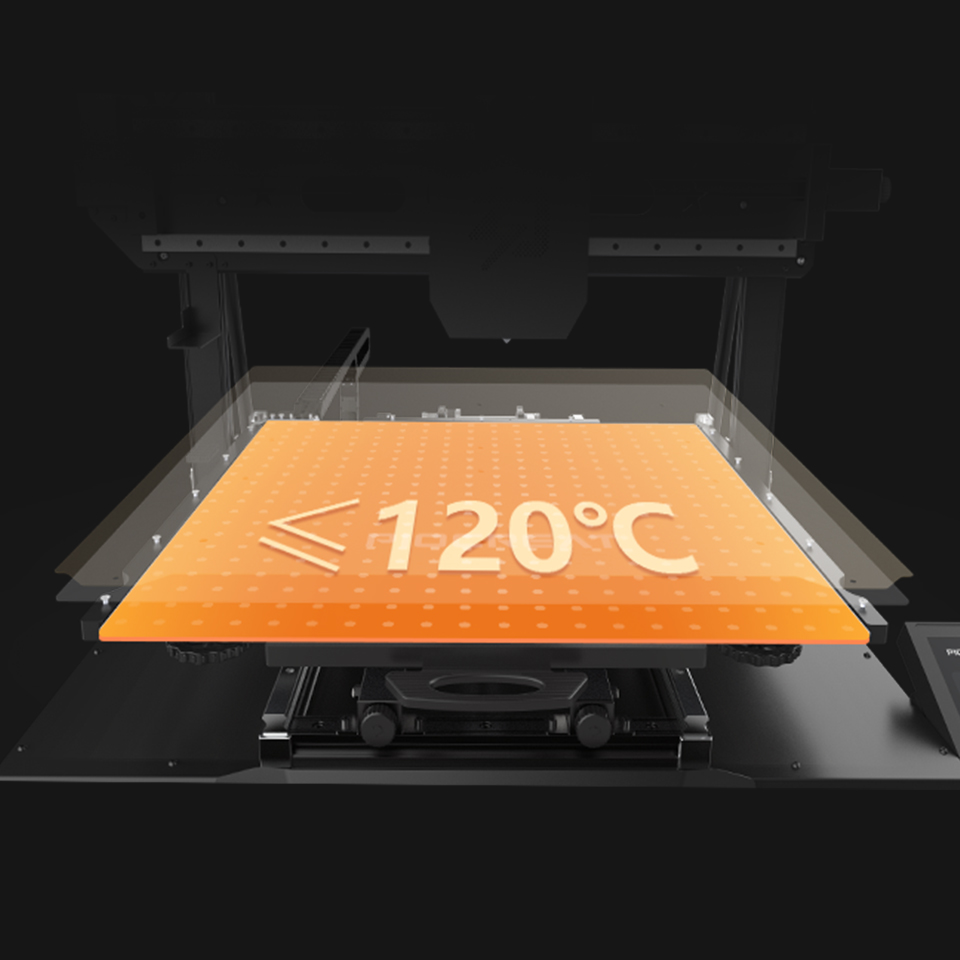

Rapid Heating
Reaches 60°C in just 5 minutes and 90°C in 8 minutes, minimizing wait times and accelerating production cycles.

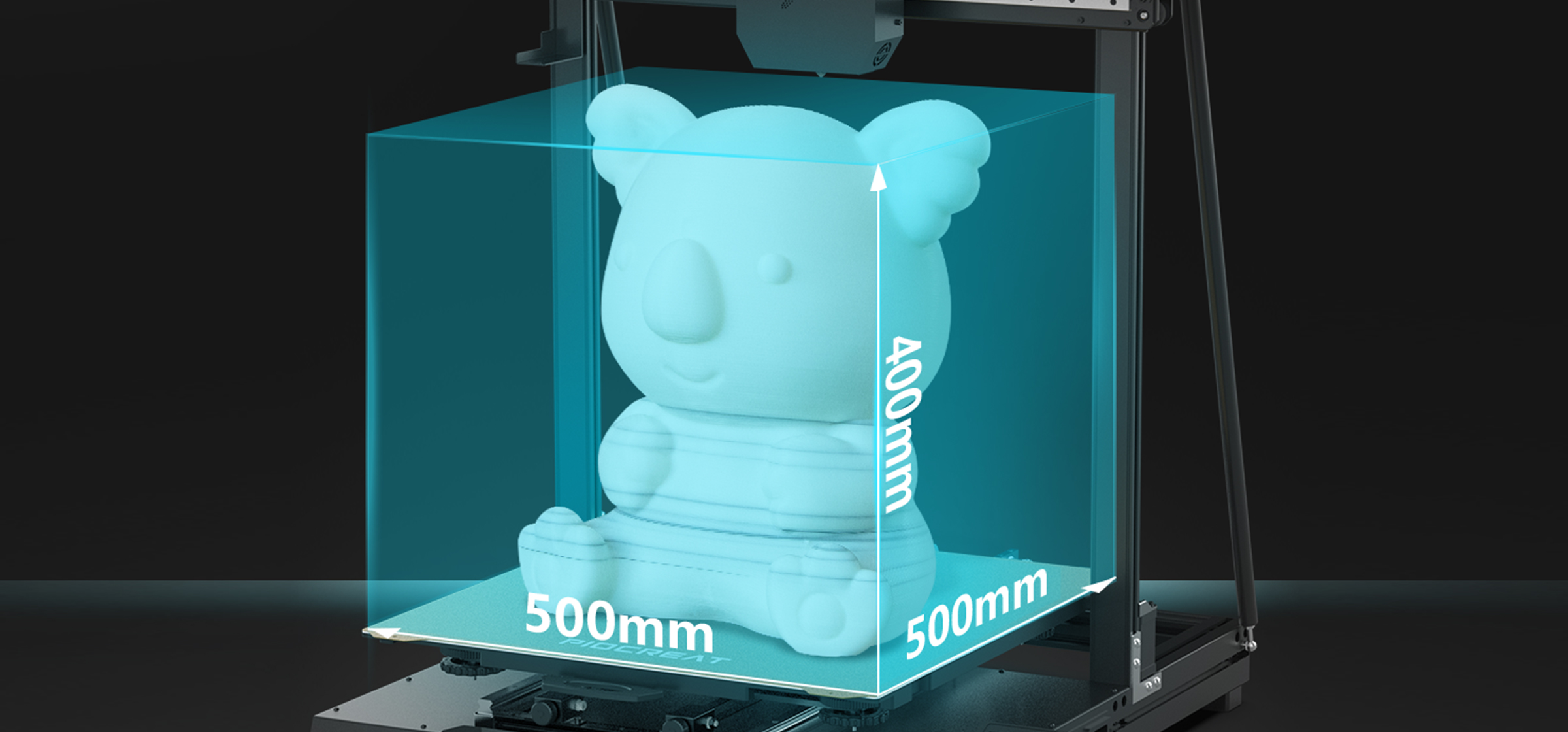

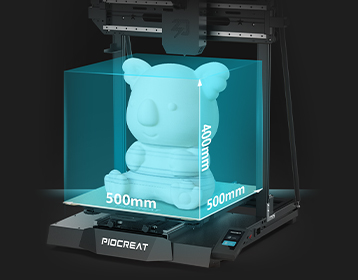

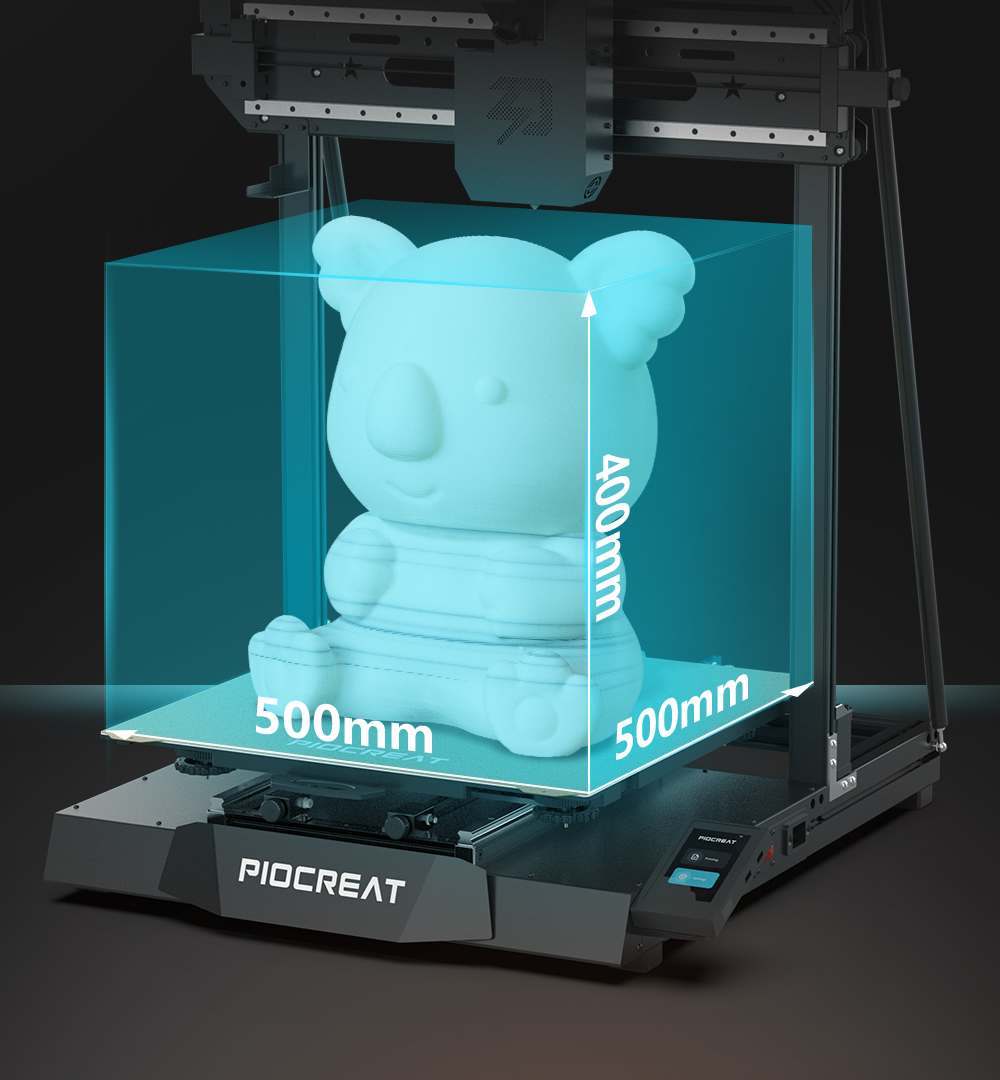

100L Massive Build Volume
With a spacious 500 × 500 × 400 mm build volume, it can produce large models up to 100 liters in a single job, streamlining the manufacturing of oversized parts

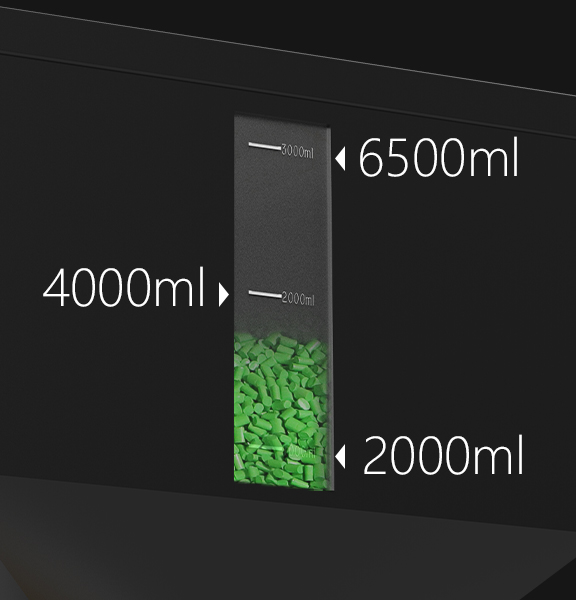

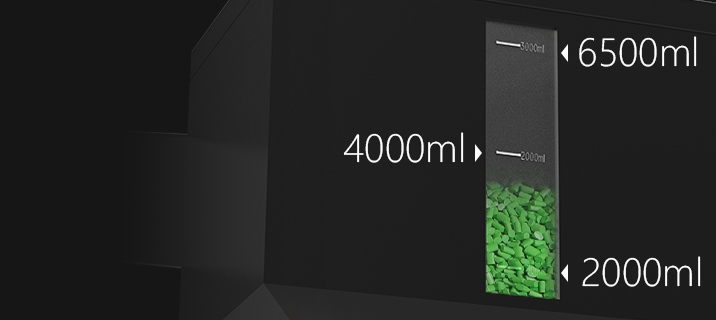

Real-Time Material Monitoring
Clear visual tracking of remaining pellets

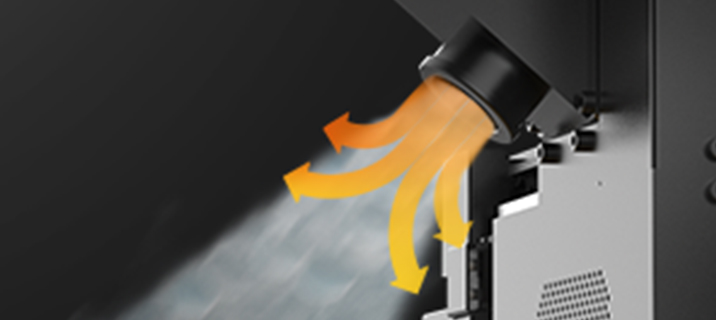

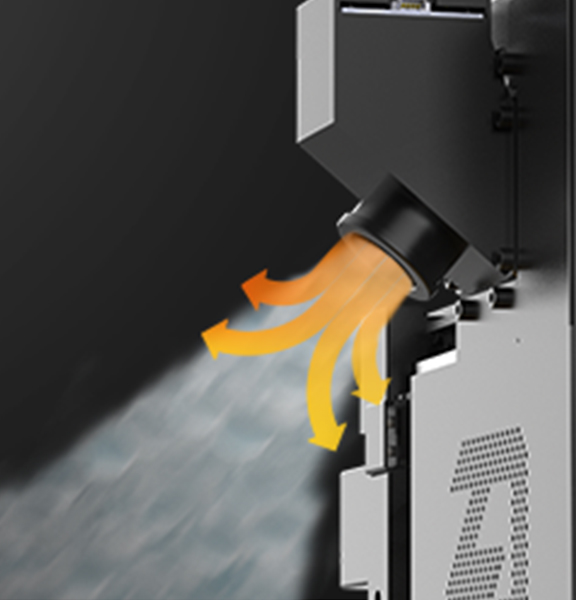

Quick Discharge System
Rapidly purges remaining material to facilitate fast changeovers

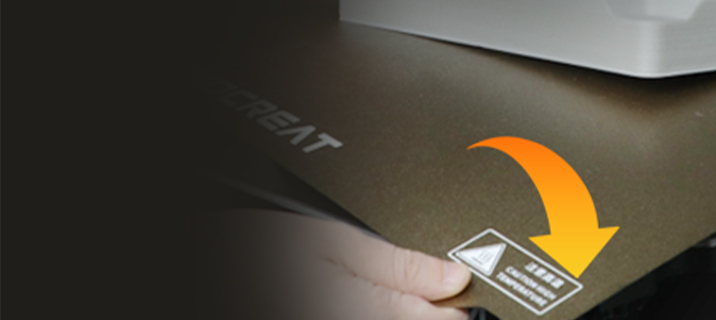

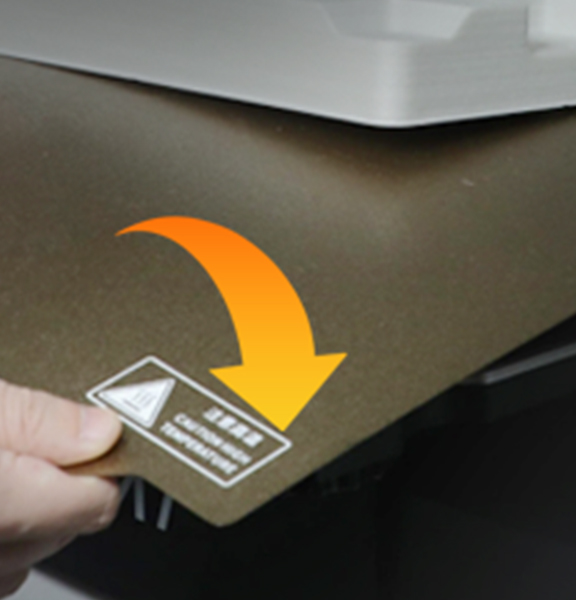

Easy to Take Model
Gently bend the platform board to remove the model

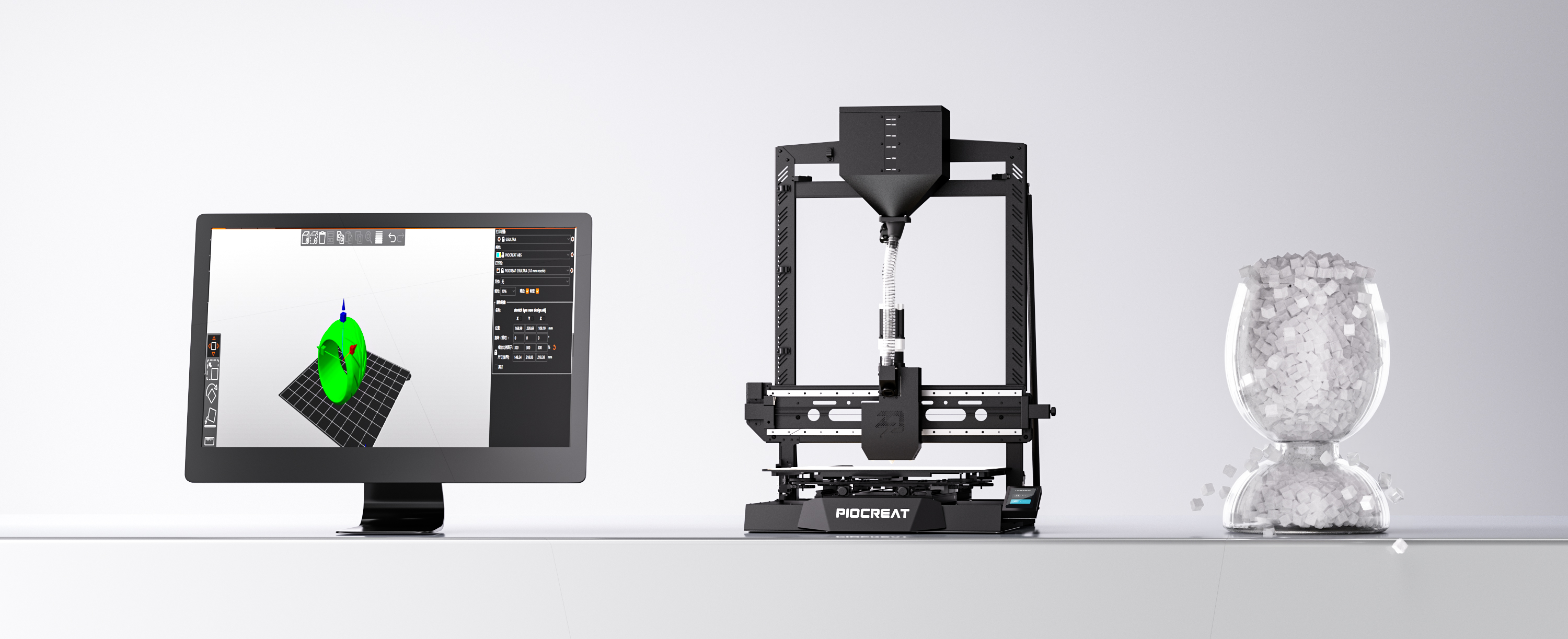

Seamless Workflow
One-Stop 3D Printing Ecosystem
We provide a comprehensive pellet printing solution—integrating shredders, pelletizers, FGF 3D printers, software and materials—to streamline your workflow from plastic recycling to finished parts
Versatile Material Support
Prints with 2–5 mm plastic pellets at temperatures up to 420°C, reducing dependency on filament. It supports pellet blending and color masterbatch additions for ultimate material flexibility · Plastic Pellets · Recycled Materials · Modified & Composite Materials
More

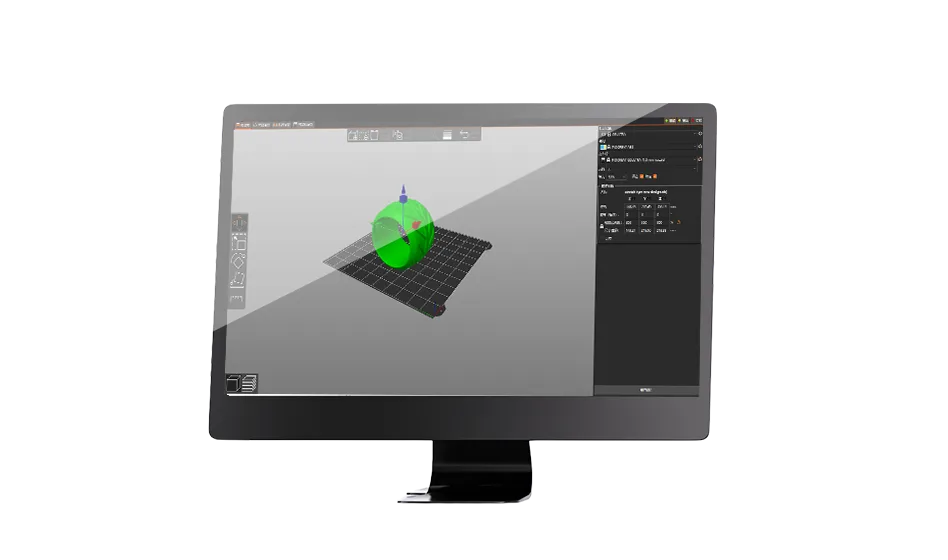

Intelligent Slicing Software
PioCreat Slicer is a professional slicing software optimized for industrial FGF pellet extrusion 3D printers. It supports fast slicing and stable toolpath planning for large-scale models, with adjustable extrusion, speed, and temperature parameters. Compatible with diverse industrial-grade pellet materials, it ensures efficient workflows for additive manufacturing applications.
You Might Also Be Interested In

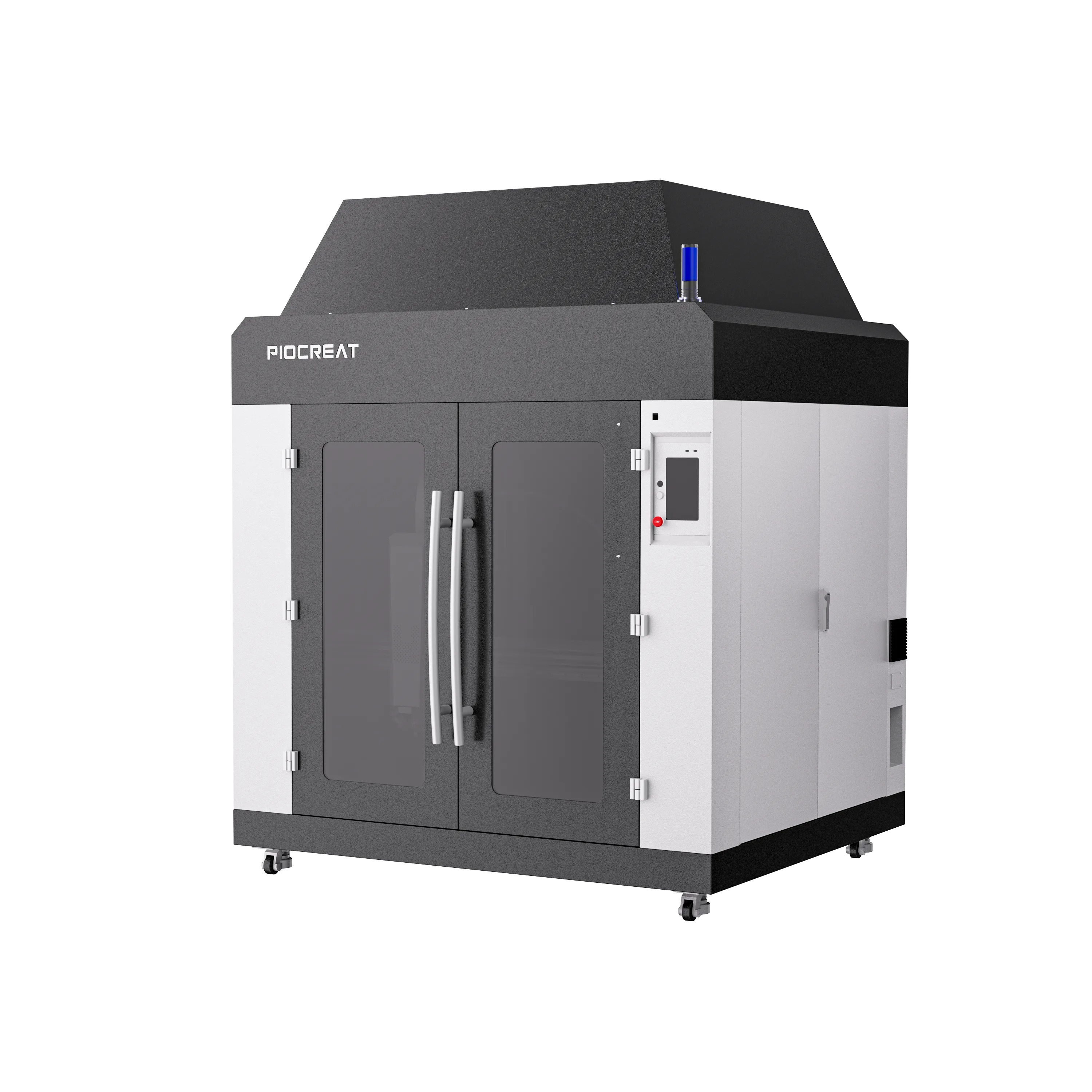

G12

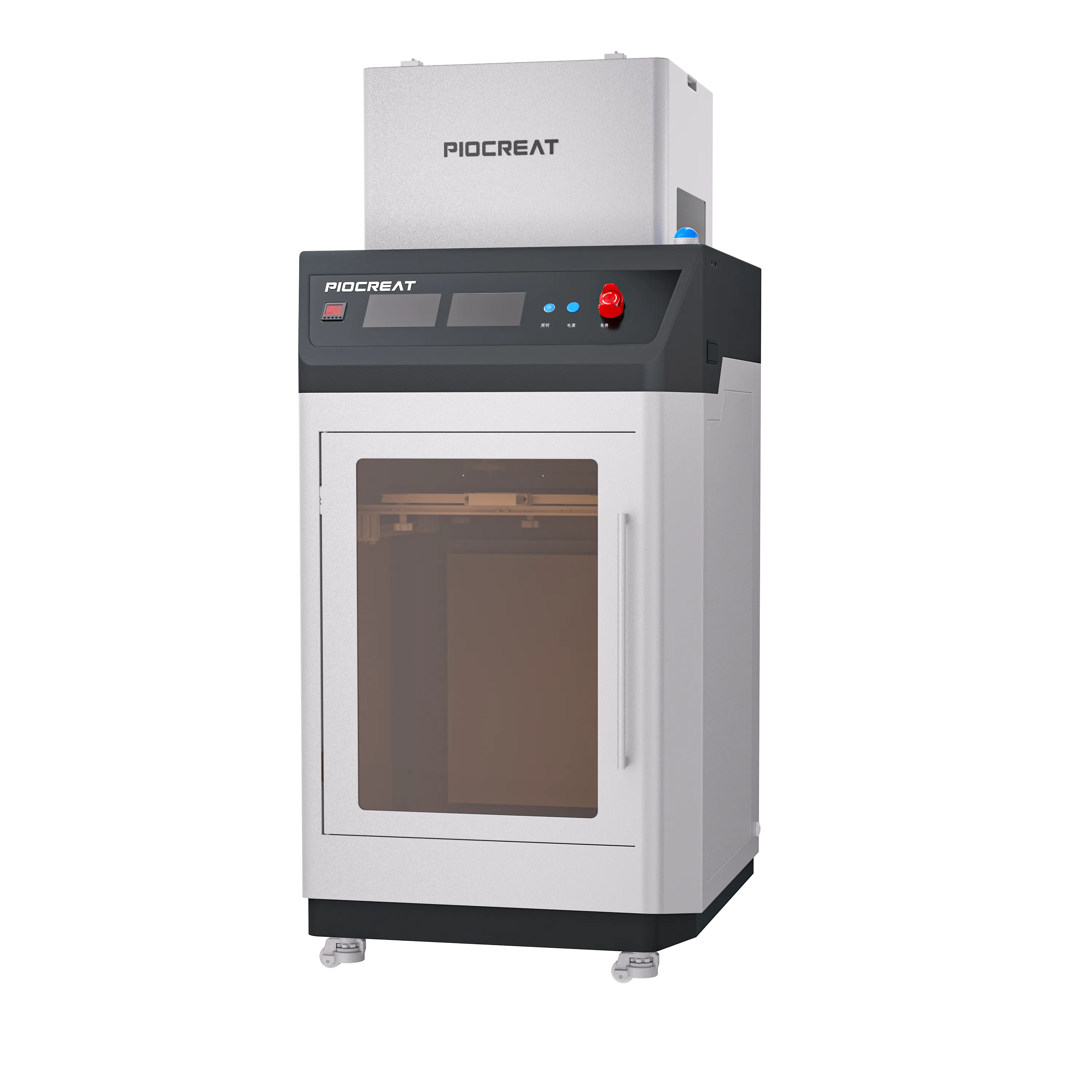

MS 01
Parameters
G5Ultra
Printing TechnologyFGF
Pellet Diameter2-5mm
VoltageAC100-110V & AC220-240V 50/60Hz
Rated Power1450W
Build Volume500x 500 x400mm
Machine Size765 x 890 x 1040mm
Package Size845 x990 x 510mm
Layer Thickness0.4-2.0mm (optional 3.0mm) Standard: 0.8mm /1.0mm / 2.0mm
Nozzle Upper Temperature<360°C
Nozzle Lower Temperature≤420°C
Heating Bed Temperature<120°C
Number of Nozzles1
Hopper Capacity3000ml
Feeding MechanismScrew Extruder
Max. Speed220mm/s
LanguagesEnglish, Chinese, German, Spanish,French,talian, Japanese, Portugal,Russian,Turkish
File FormatSTL, OBJ
ConnectivityUSB Disk / WIFI
Slice SoftwarePioCreat Slicer/Cura/Simplify3D
Nozzle Diameter0.2-1.0mm
Compatible PelletPLA\PCVABS\PETG\PETG-GF/PP/TPU/PA-CF/ABS-CF/PC-CF, etc
Net Weight42KG
Gross Weight70KG
