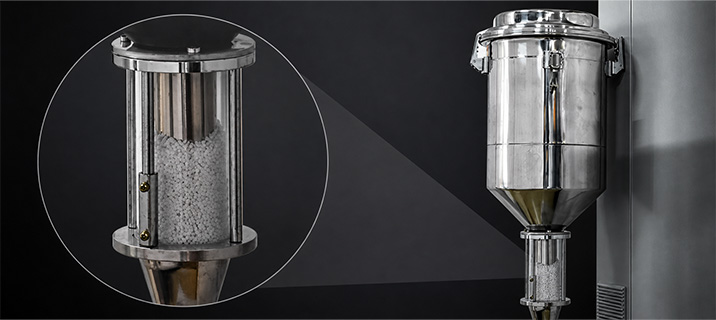

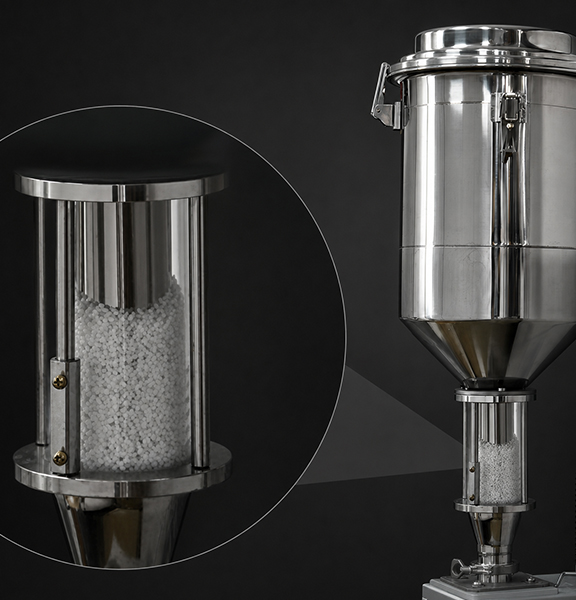

25L High-Capacity Hopper
Transparent barrel design allows for real-time monitoring of residual materials
G12
Industrial-Grade Pellets 3D Printer
Application
Highlights
Massive Print Volume
1200 × 1000 × 1000 mm build volume designed for large-scale industrial manufacturing

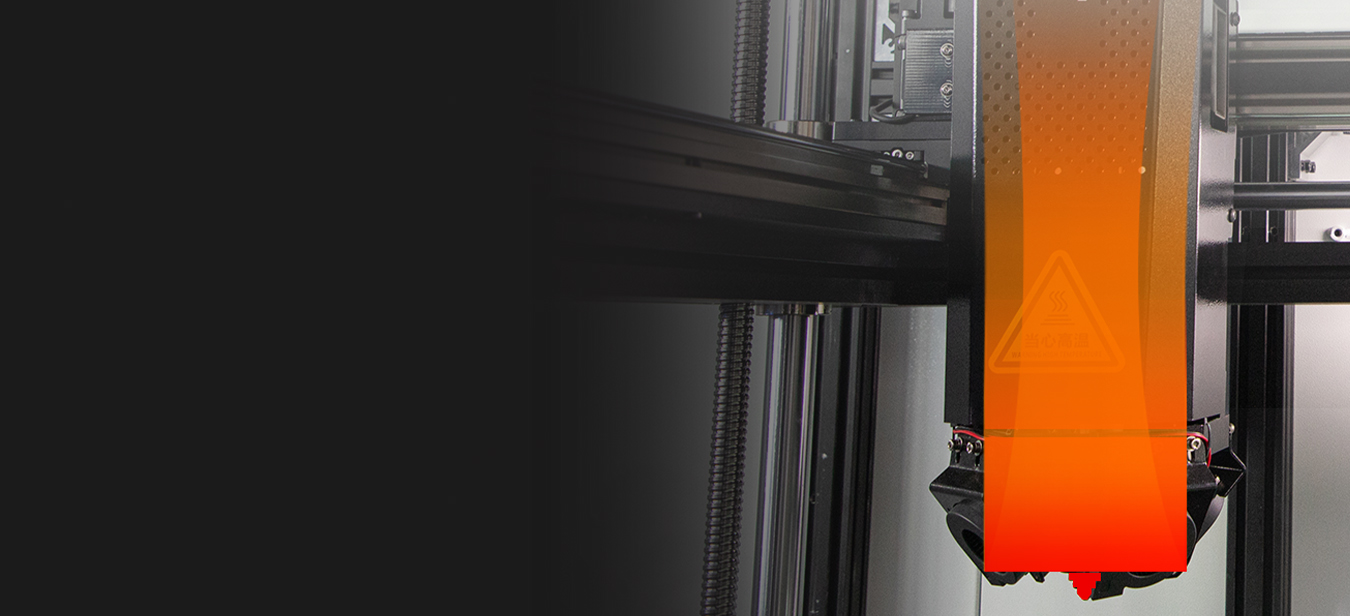

High-Temperature Extrusion
450°C nozzle for engineering-grade materials.

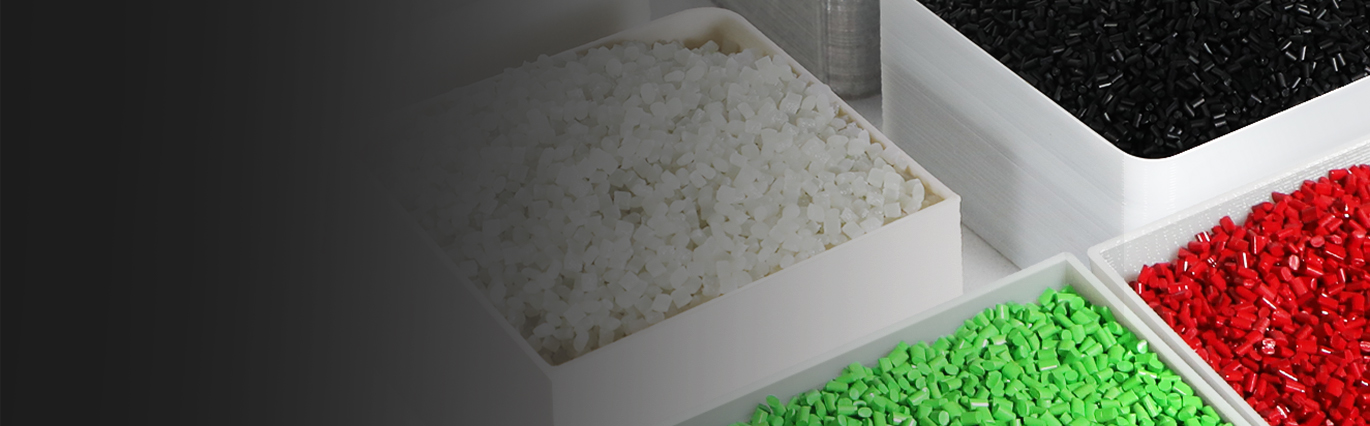

Wide Material Options
Broad compatibility with engineering-grade materials.
industrial-scale applications

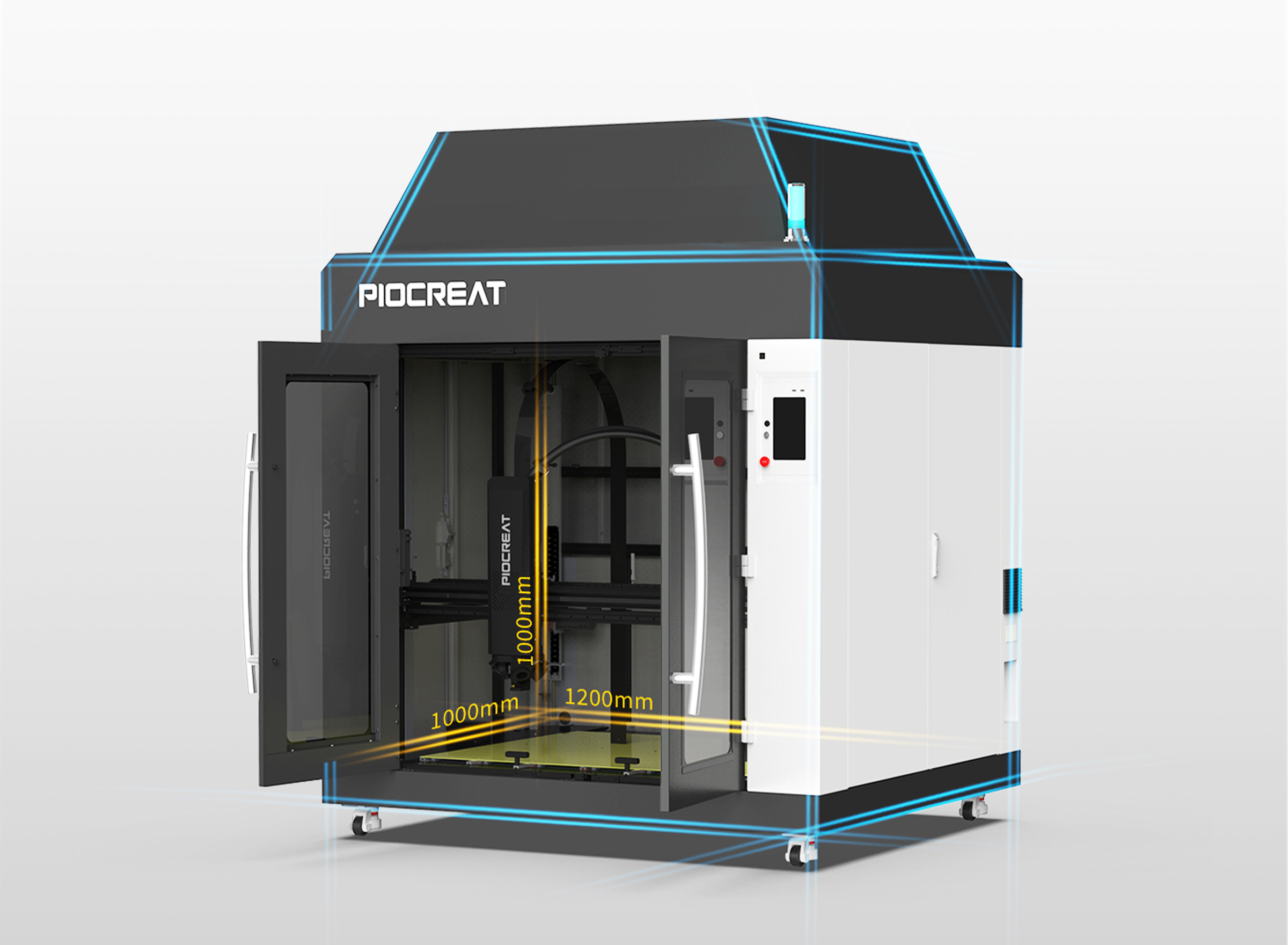

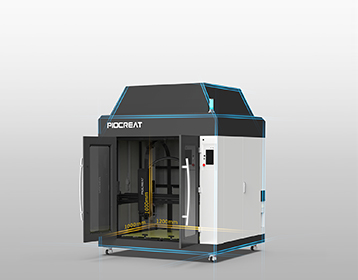

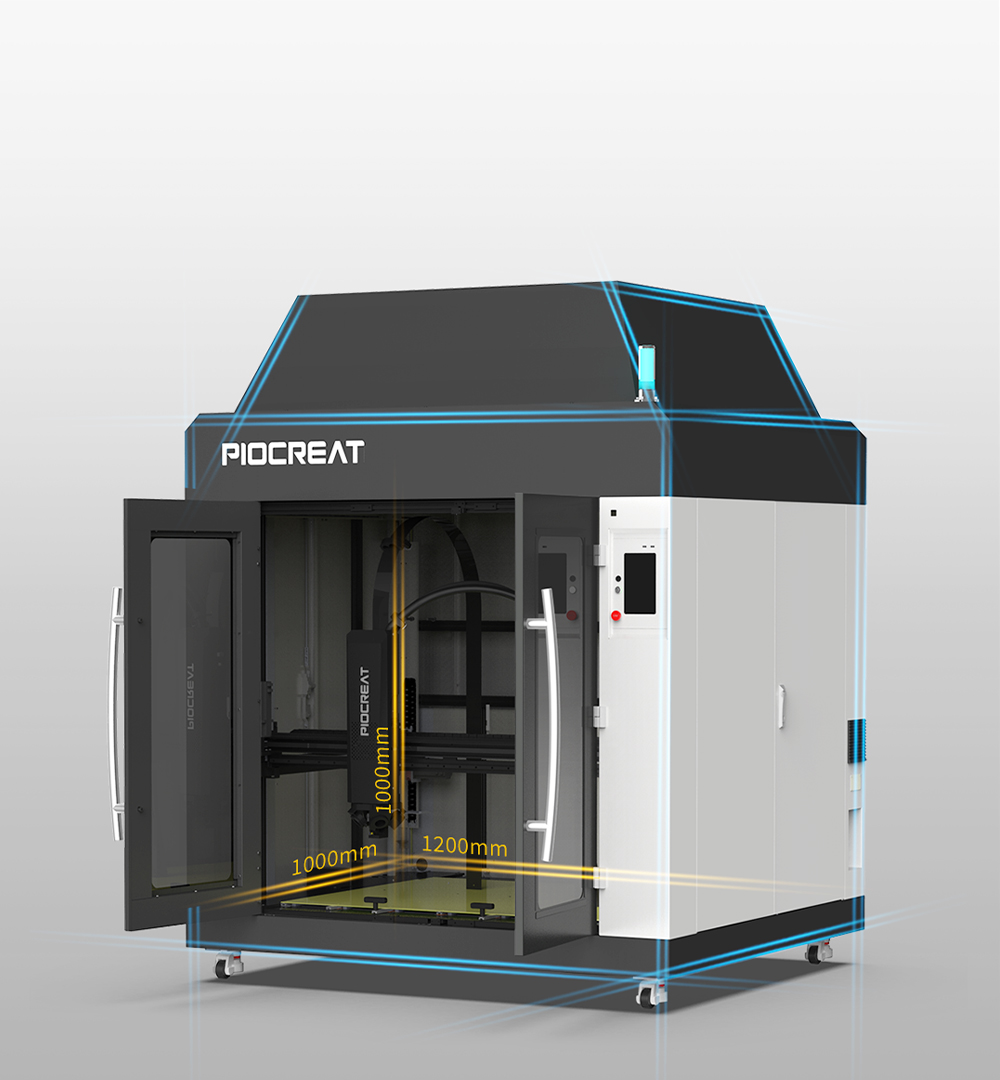

1200L Massive Build Volume

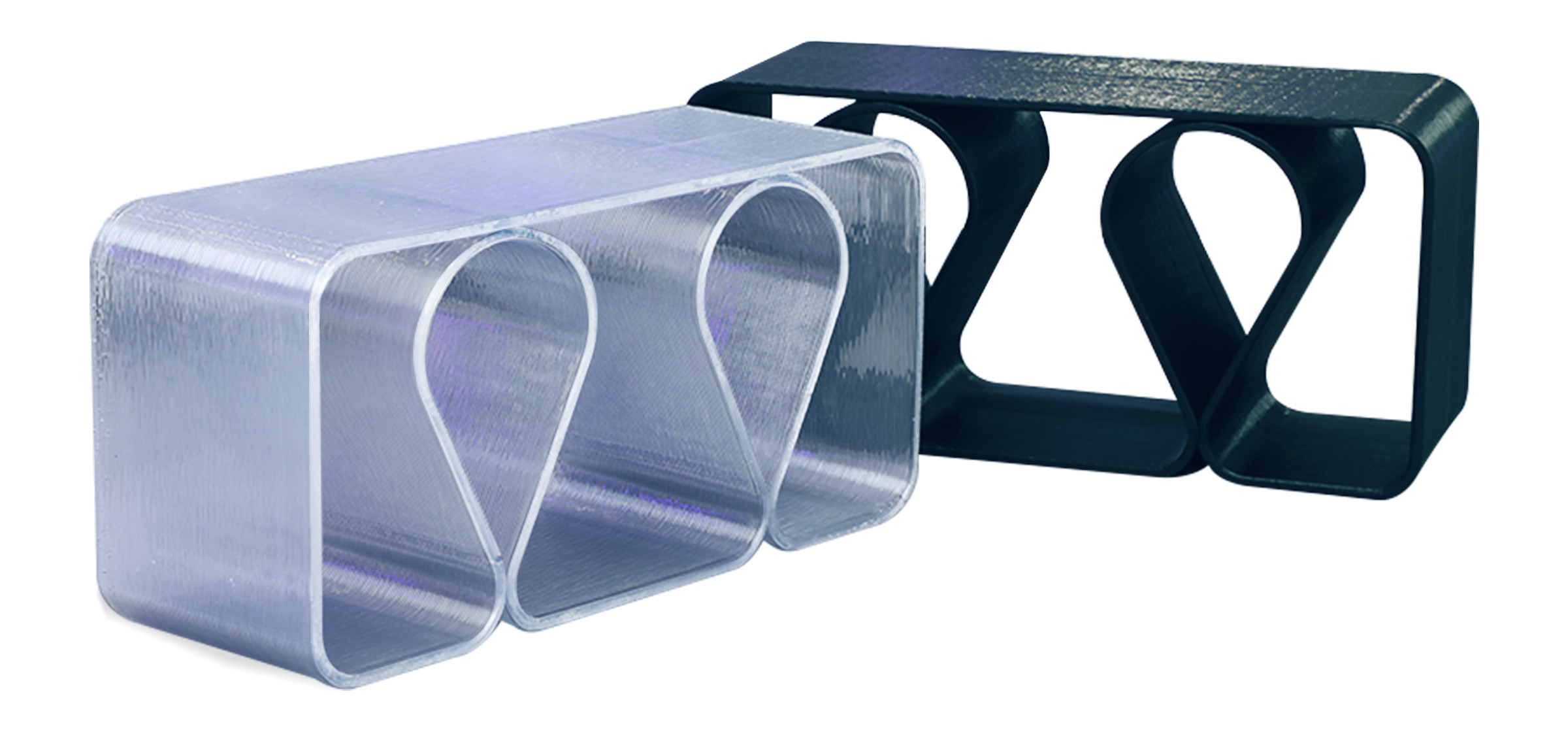

Featuring a colossal 1200 × 1000 × 1000 mm workspace, the G12 is engineered for producing large-scale industrial models with professional-grade quality. Ideal for manufacturing industrial parts, molds, home décor, sculptures, display props, shaped curtain walls, and research models.
450°C Pellet Extrusion

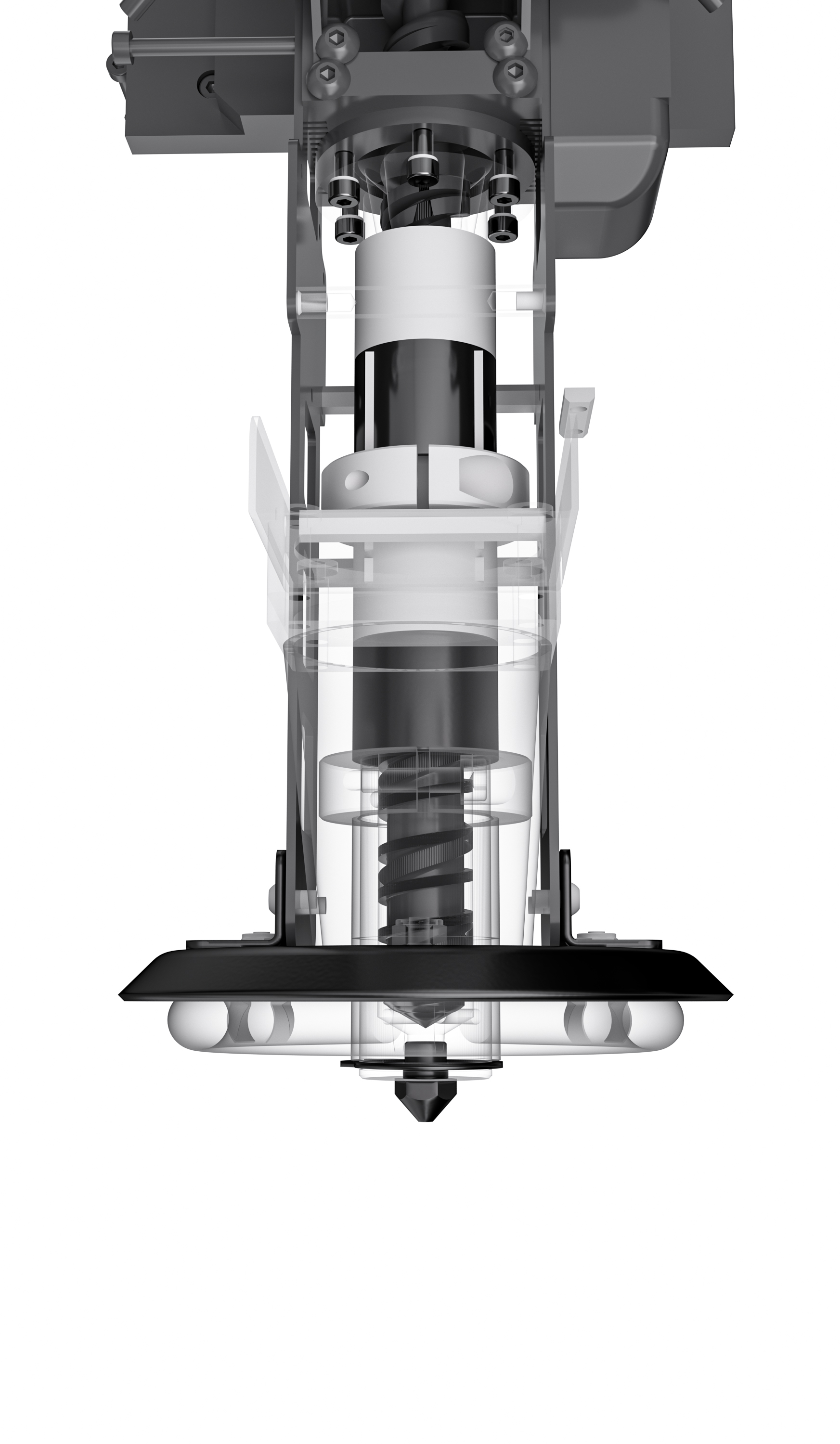

Advanced Extrusion System
Advanced Extrusion System
Engineered for powerful extrusion, high-temperature resilience, and stable material flow across a wide range of industrial applications.
Segmented Heating Design
Ensures highly precise temperature control with a proprietary screw extruder that reaches up to 450°C
Stable Material Discharge
A retractable printhead delivers smooth, consistent extrusion while effectively preventing nozzle clogging for fast, reliable printing
High-Output Extrusion
Achieves a maximum extrusion rate of up to 3 kg/h
Lightning-Fast Printing
Max Extrusion Output3 kg/h
Max Printing Speed220 mm/s

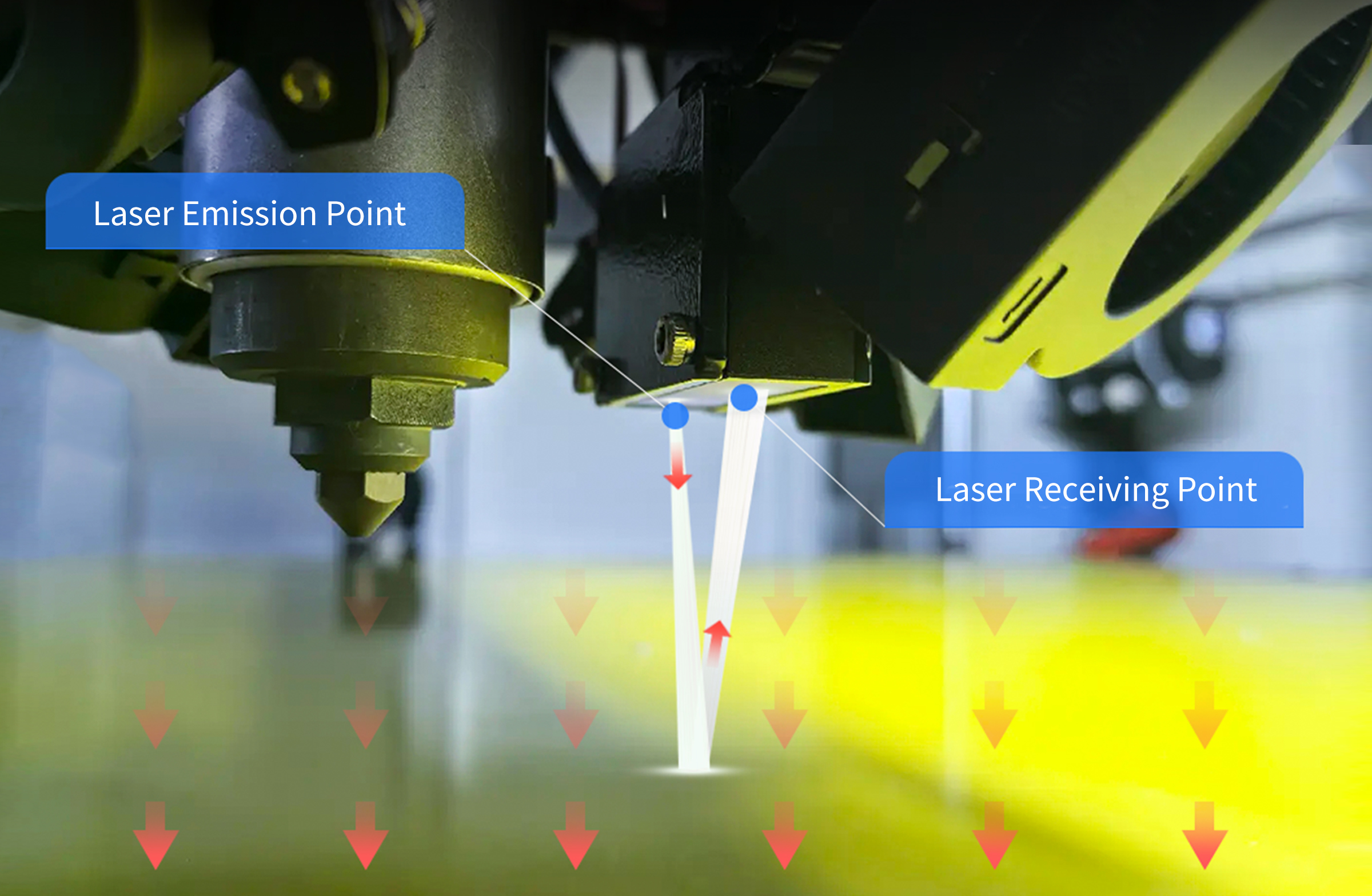

120-Point Intelligent Laser Leveling
Utilizes non-contact laser measurement for highly accurate, real-time bed leveling. This prevents interference with the model, eliminates warping, and ensures a print success rate of over 99%.

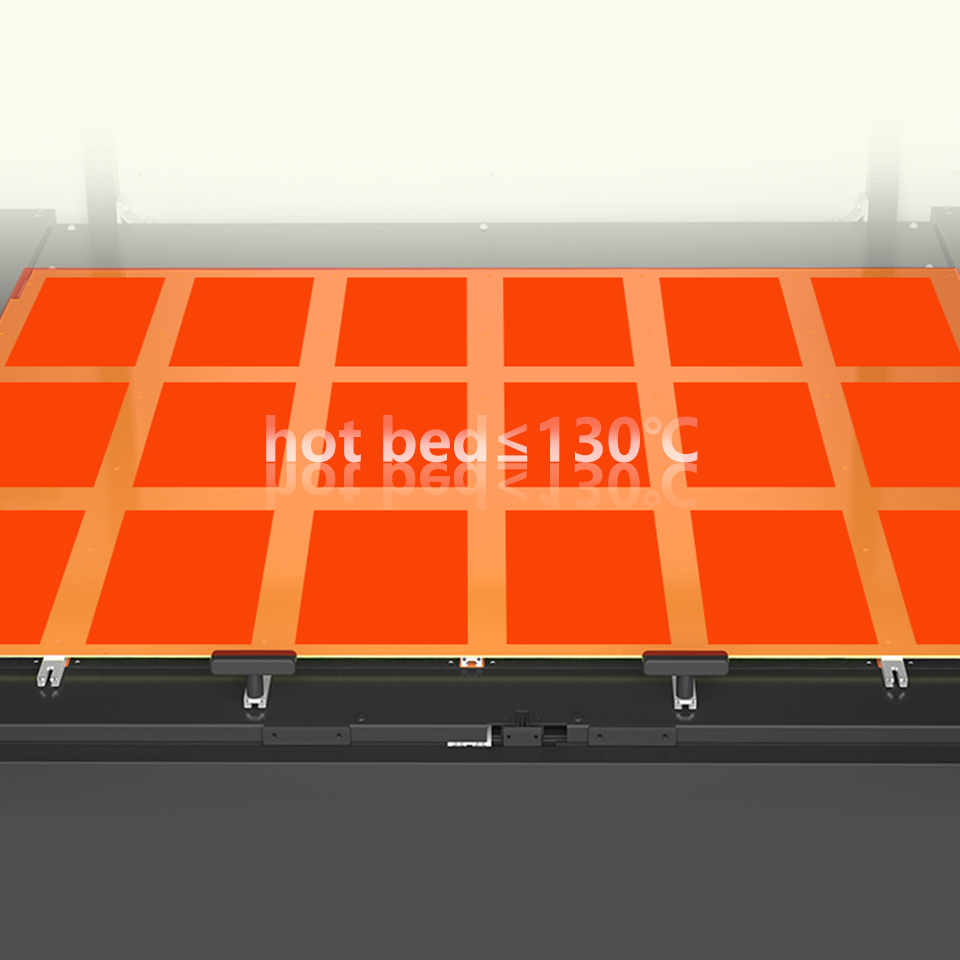

Intelligent Heated Bed Zoning
Heating modules automatically activate or deactivate based on the model's location during slicing, significantly optimizing energy efficiency and thermal control.

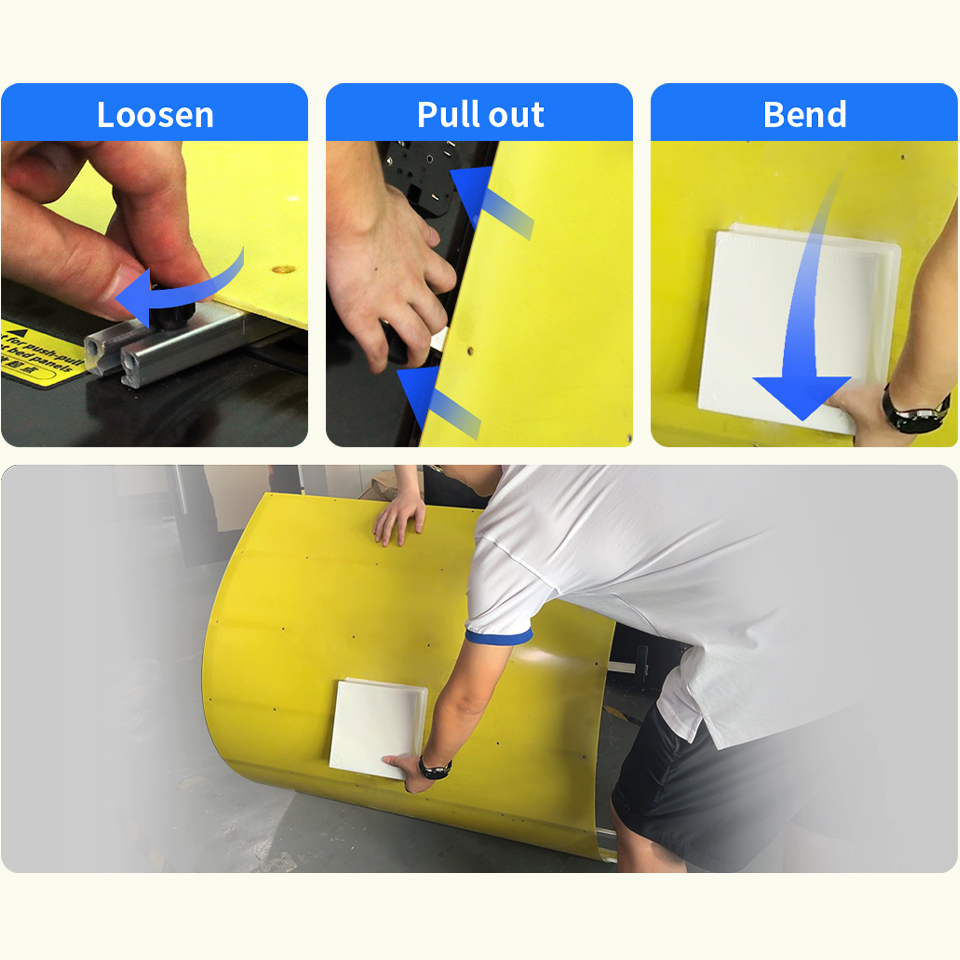

Quick-Release Build Plate
Models can be removed using a spatula or effortlessly released by slightly bending the flexible build plate.
Industrial-Grade Large-Format Printing
Tailored for demanding industrial workflows. It efficiently produces large functional parts, molds, sculptures, home décor, research prototypes, and architectural components with uncompromising professional-grade quality.

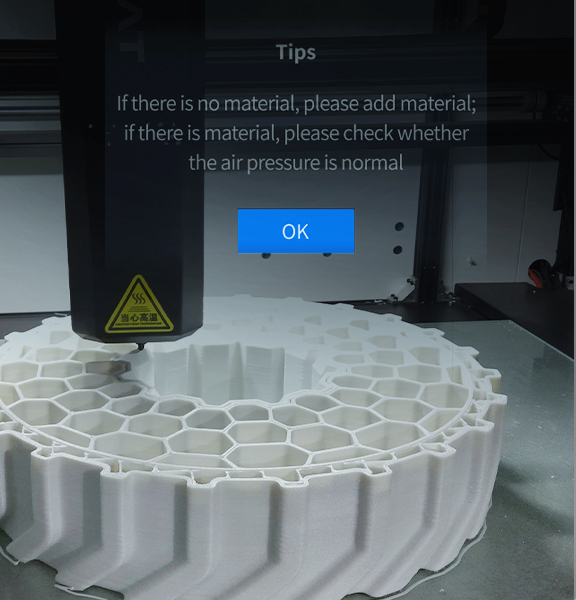

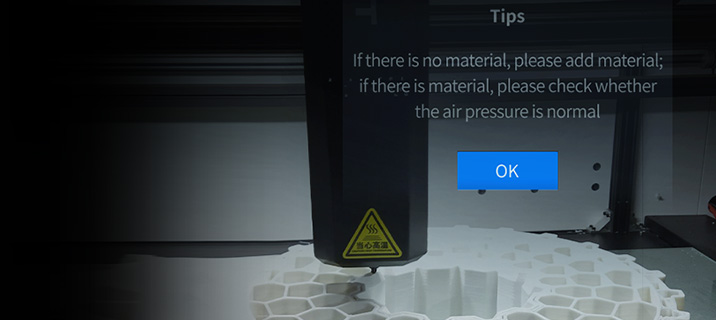

Material Run-Out Alarm
Equipped with intelligent level sensors to automatically detect material shortages

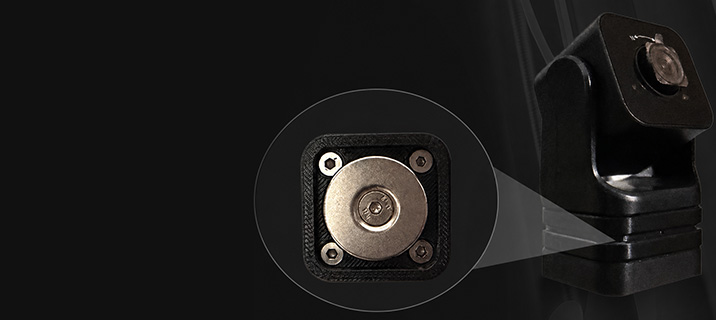

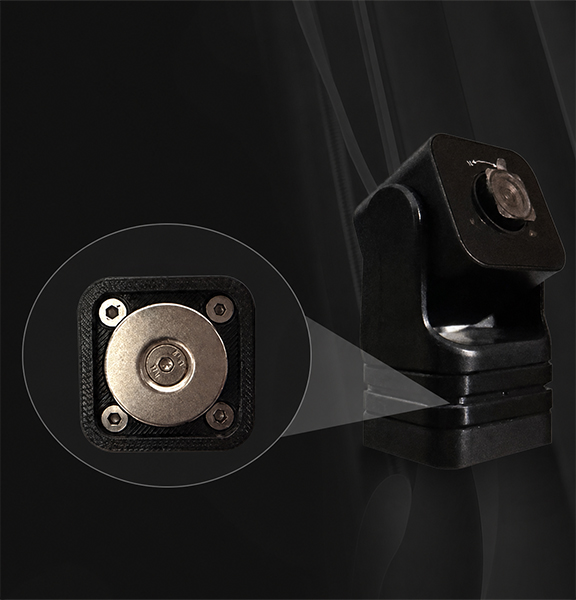

Camera & Time-Lapse
Magnetic mounting enables flexible positioning for real-time remote monitoring

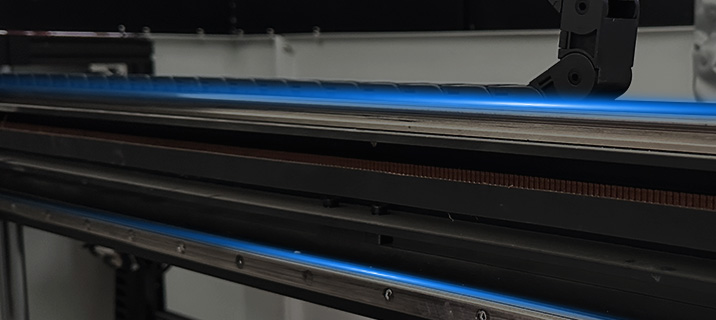

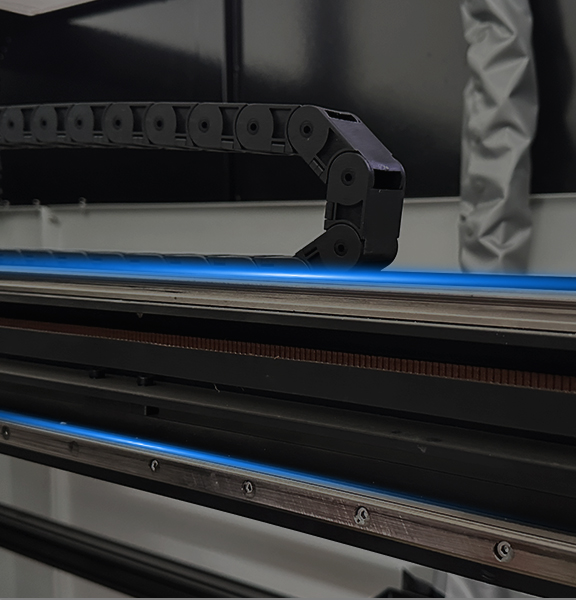

Heavy-Duty Guide Belts
Delivers high-precision and high-load motion control for unmatched stability

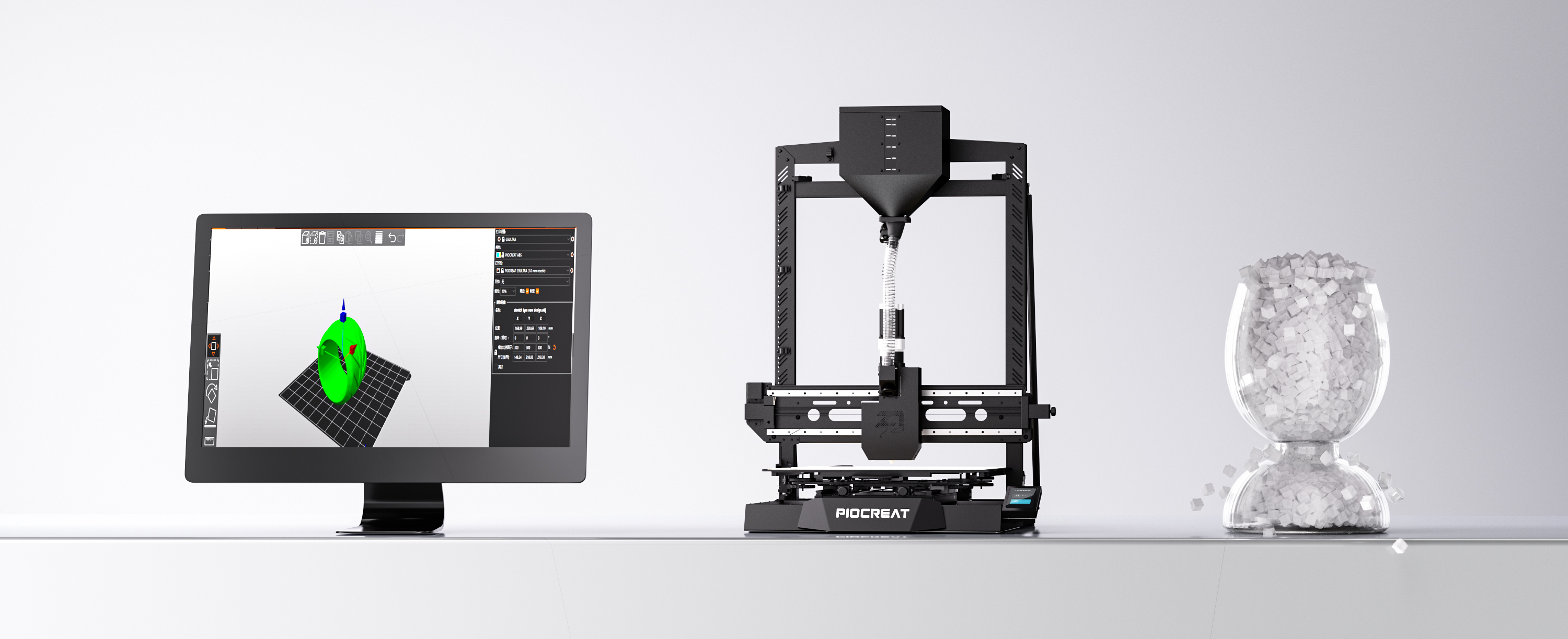

Seamless Workflow
One-Stop 3D Printing Ecosystem
We provide a comprehensive pellet printing solution—integrating shredders, pelletizers, FGF 3D printers, software and materials—to streamline your workflow from plastic recycling to finished parts.

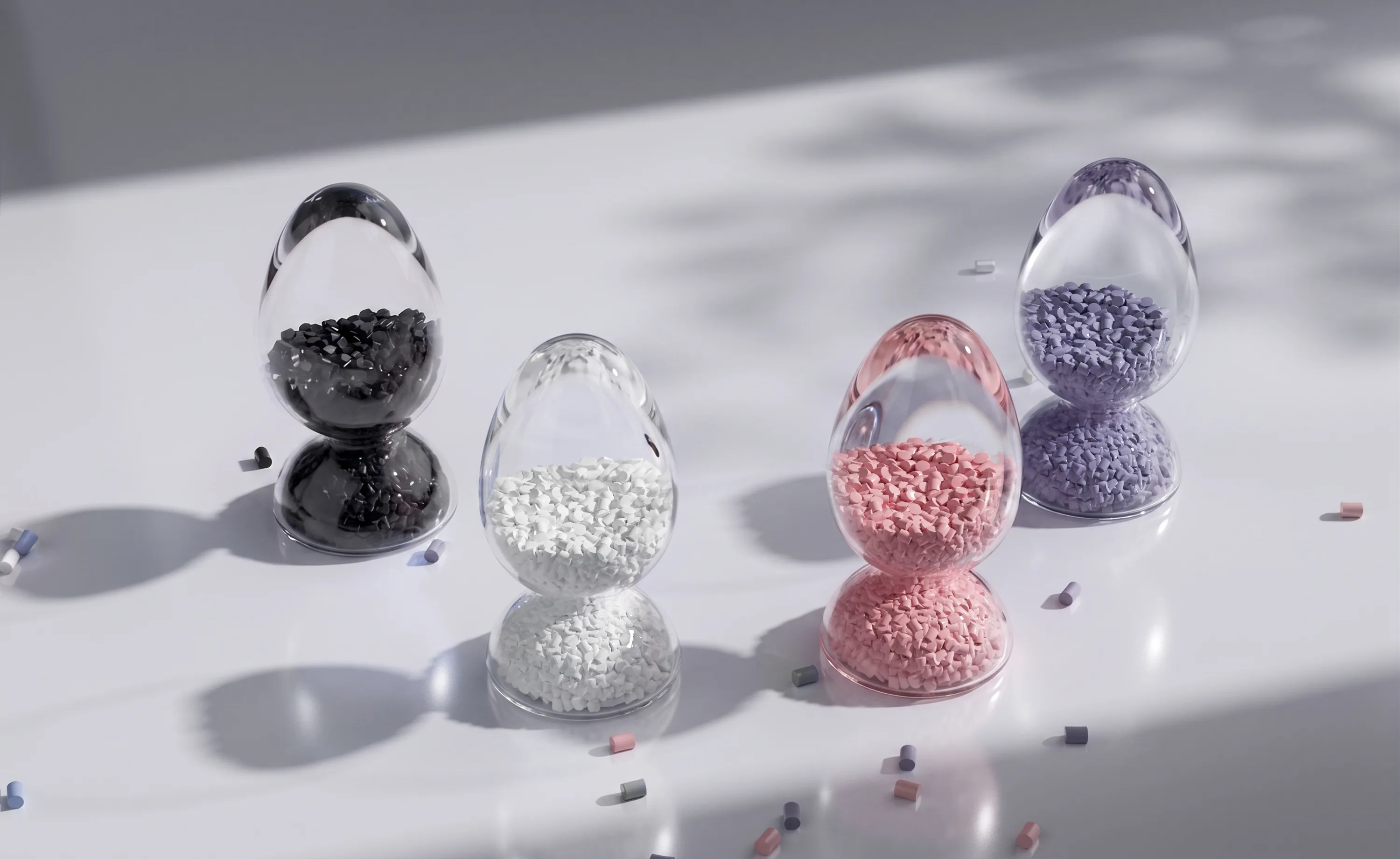

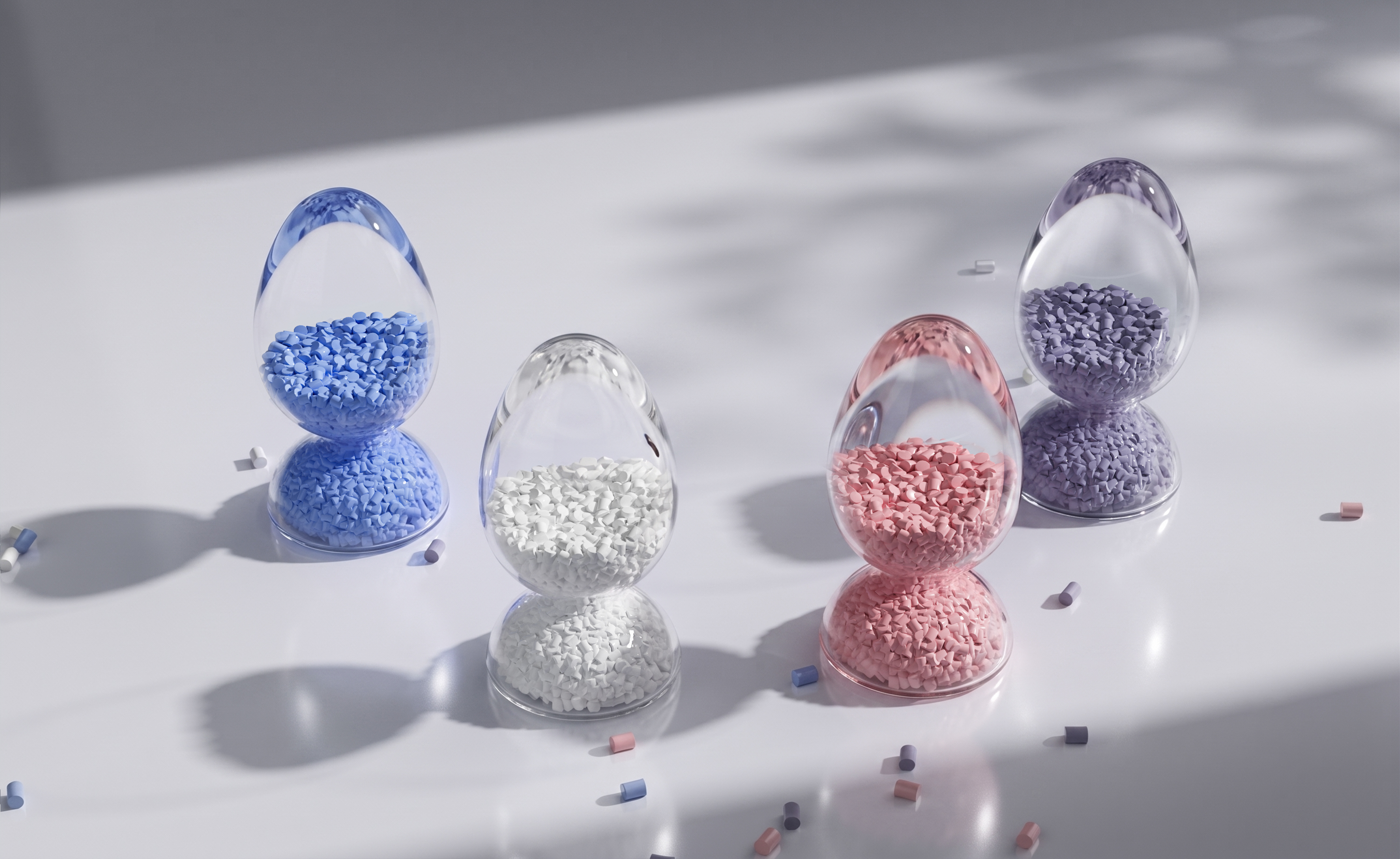

Versatile Material Support
Prints with 2–5 mm plastic pellets at temperatures up to 420°C, reducing dependency on filament. It supports pellet blending and color masterbatch additions for ultimate material flexibility.

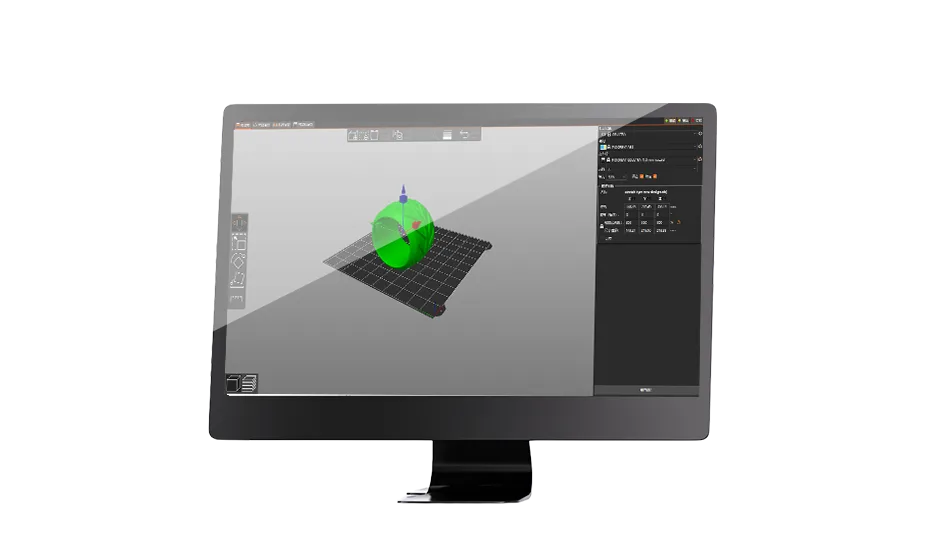

Intelligent Slicing Software
PioCreat Slicer is a professional slicing software optimized for industrial FGF pellet extrusion 3D printers. It supports fast slicing and stable toolpath planning for large-scale models, with adjustable extrusion, speed, and temperature parameters. Compatible with diverse industrial-grade pellet materials, it ensures efficient workflows for additive manufacturing applications.
You Might Also Be Interested In

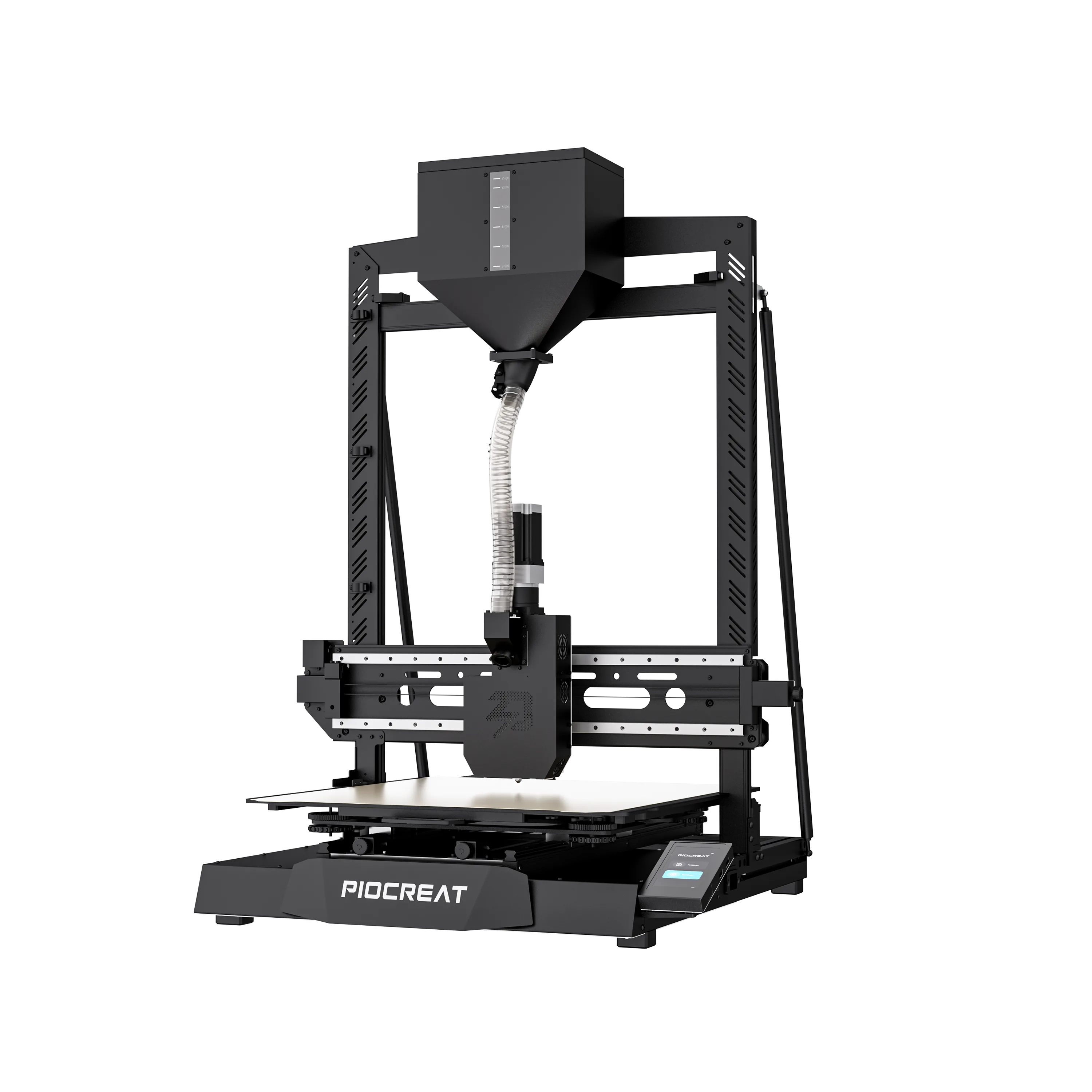

G5 Ultra

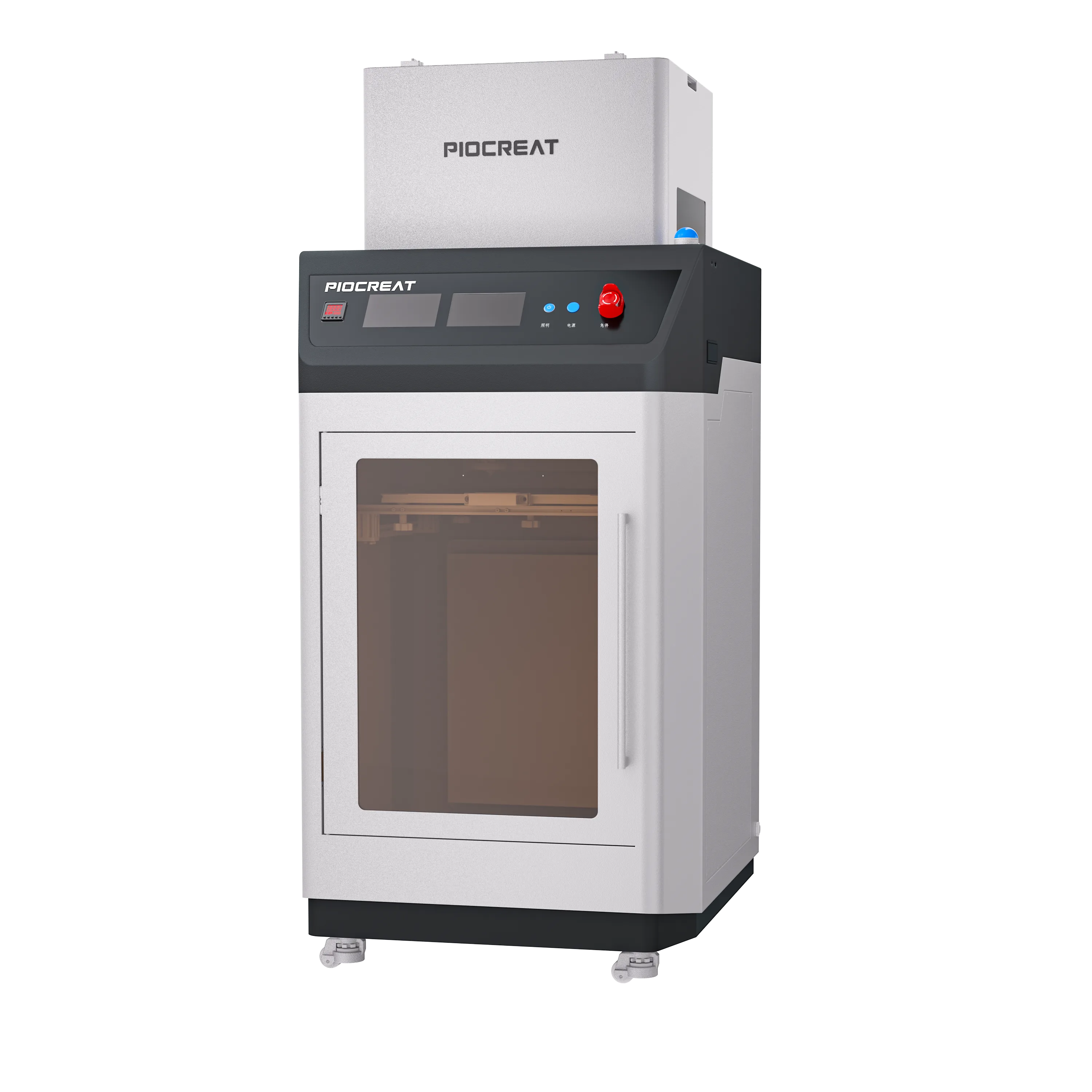

MS01
Parameters
G12
Printing TechnolgyFGF
Supply VoltageSingle-phase AC 220V / (American) AC 110V
Build Volume1200 x1000x1000mm
Nozzle Diameter0.8-4.0mm, Standard (1.2mm/1.5mm/2.0mm/3.0mm/4.0mm)
Hopper capacity25,000ml
Feeding MechanismScrew Extrusion
Number of Nozzles1
Slicing SoftwarePioCreat Slicer/Cura/Simplify3D
Layer Thickness0.2-2.0mm
ConnectivityUSB Drive / WiFi
LanguagesEnglish/Simplified Chinese/German/Spanish/French/ltalian/Japanese/Portuguese
Compatible PelletPLA/PC/ABS/PETG/PA-CF/PETG-GF/PP/TPU/ABS-CF/PC-CF, etc
Pellet Diameter2-5mm
Rated Voltage7000W
Machine Size2135 x 1775 x 2305mm
Upper Nozzle Temperature≤440°C
Lower Nozzle Temperature≤450°C
Hot Bed Temperature≤130°C
Max. Speed90mm/s
File FormatSTL, OBJ, 3MF
Net Weight750kg
Gross Weight1285kg
